Sink support handrail (horizontal + lower loop) — stainless steel

  • Category Grab bars
  • Color Kumush (nerjaveyka)
  • Tip Rakovina opora handrail (gorizontal + pastki ilmoq)
  • Sirti Silliq, sayqallangan
  • Size 500 × 300 × 250 mm (uzunlik × ilmoq × chuqurlik)
  • Material Zanglamaydigan po'lat (nerjaveyka)
  • Standard Imkoniyati cheklangan shaxslar uchun muhitni moslashtirish (GOST R 51261 / O'z DSt / SP 59 talablariga mos)
  • O'rnatish Faqat mustahkam, yuk ko'taruvchi devor
  • Mahkamlash 2 devor flanesi (montaj to'plami bilan)
  • Load ko'tarish Load ko'tarish (kg) — yetkazib beruvchi bilan tasdiqlanadi
  • Quvur diametri 32 mm
650000 UZS

Description

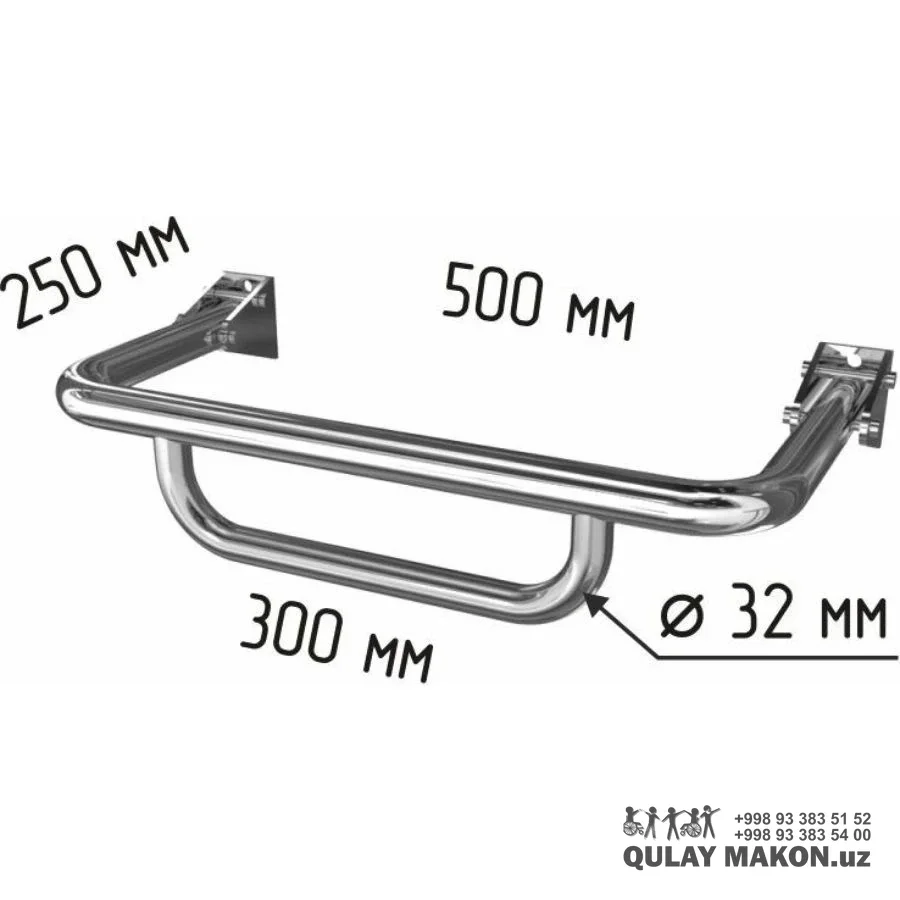

Sink support handrail — a two-branch support tube installed under the washbasin: the upper horizontal part (500 mm) serves as a hand support, while the lower semicircular loop (300 mm) holds the weight of the sink and the load on it.

The structure is fixed to 2 wall flanges (depth 250 mm). The tube is of stainless steel, d32 mm — a diameter convenient for gripping, hygienic and moisture-resistant.

The product is designed taking into account the requirements for adapting the environment for people with disabilities (GOST R 51261 / O'z DSt / SP 59 standards).

IMPORTANT: since the handrail is a load-bearing element, it must be installed correctly only on a strong, load-bearing wall. The lower loop must not touch the solid sink — a 5–10 mm gap.

Target institutions: hospitals, nursing homes, sanatoriums, hotels, government facilities.

For whom

For people with disabilities, the elderly and patients. Protects against falling while washing hands at the sink and takes the load off the washbasin. Used in government and private adapted restrooms.

Usage instructions

1. Install the handrail only on a strong, load-bearing wall, under the sink
2. The lower loop must sit with a 5–10 mm gap from the sink
3. Mark the holes of the 2 wall flanges, fix with dowels+screws
4. Fit the cover flanges and check the strength

Where to use

Restroom, Toilet, Hospital, Nursing home, Sanatorium, Hotel
