Public sign — Accessible lift (cabin + arrows) (yellow, square, no Braille)
Jamoat belgisi — NMG lift (kabin + o'qchalar) (sariq, kvadrat, brayl yo'q) — NMG lift sariq vizual — aravacha + lift ramka + o'qchalar (100/150/200 mm)
[SAHNA] Jamoat belgisi — NMG lift (kabin + o'qchalar) (sariq, kvadrat, brayl yo'q) — 20-belgi kollaj (Qulay Makon jamoat sariq oilasi marketing)
Jamoat belgisi — NMG lift (kabin + o'qchalar) (sariq, kvadrat, brayl yo'q) — NMG lift sariq — same-product galereya

Public sign — Accessible lift (cabin + arrows) (yellow, square, no Braille)

Leave the first review
  • Category Public information signs (yellow square, no Braille)
  • Color Yellow fon + qora freym va piktogramma
  • Tip Jamoat ma'lumot belgisi — NMG lift (kabin + o'qchalar)
  • Brayl No (oddiy vizual)
  • Forma Kvadrat (1:1)
  • Standard GOST R 12.4.026-2015 (W + D семейство), ISO 7001 (Public information symbols), ISO 7010, SP 59.13330.2020 talablariga muvofiq
  • O'rnatish Yopishqoq (3M VHB) yoki vintli (4 burchak teshigi)
  • Shape kodi ELEVATOR-NMG-YELLOW
  • Color sxemasi Yellow fon (#FFEC00) + qora freym + qora piktogramma
  • EN 81-70 talab Lift kenglik min 110 cm, chuqurlik 140 cm, eshik min 85 cm
  • Features o'lcham 300×300 mm va undan katta — buyurtmaga ko'ra
  • Standard o'lcham 150 × 150 mm
  • Available o'lchamlar 100×100, 150×150, 200×200 mm (racmda ko'rsatilgan)
  • Qo'shimcha standart EN 81-70:2021 (Lift accessibility), ISO 21542:2021
  • Material variantlari Plyonka samokleyka 0.5 mm, ПВХ plita 3 mm (standart), Aluminum kompozit 3 mm, Yorug'lik aks ettiruvchi plyonka, Emallangan metall (tashqi muhit, uzoq xizmat)
  • O'rnatish balandligi Eshik yonida 1.4–1.6 m, koridor guidance 2.0–2.5 m
Request price

Description

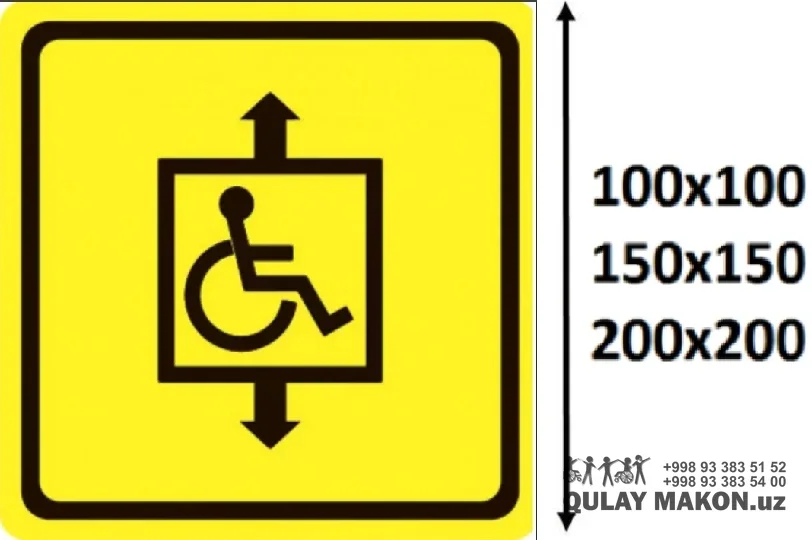

Public information sign — Accessible lift (cabin + arrows) (yellow, square) — on a yellow background a black frame and pictogram: inside a lift frame (square) a silhouette of a person in a wheelchair + up and down arrows.

Placement: the entrance to an accessible lift (on each floor), a directional sign around the lift (corridor), next to the building entrance (direction to the main accessible entrance). Transport station, hospital, government institution corridor.

3-family catalogue cross-references:

  • QM-NMG-INTERIOR-ELEVATOR-001 — Modern blue variant (premium interior, hotel)

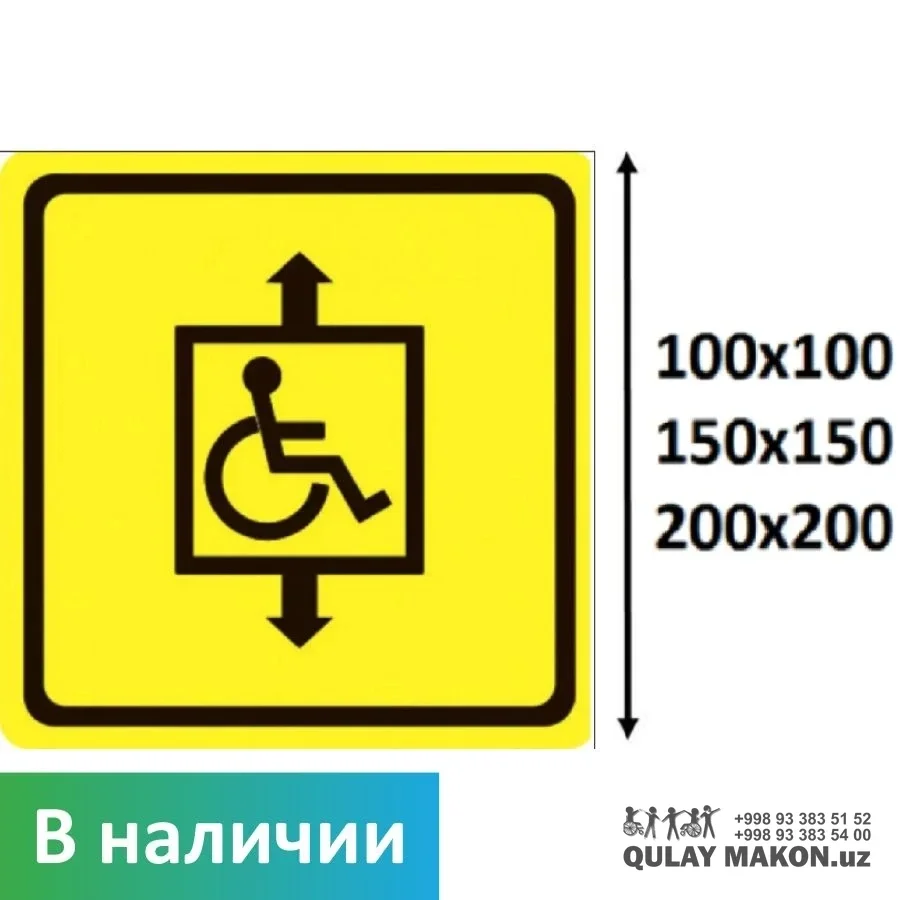

Size variants (shown in the image):

  • 100×100 mm — small (wall, inside a corridor)
  • 150×150 mm — medium (the standard for main navigation)
  • 200×200 mm — large (a large corridor, façade sign)
  • 300×300 mm and larger — special order

Material variants:

  • Self-adhesive film 0.5 mm — indoor adhesive, door/wall
  • PVC plate 3 mm — wall, post (standard)
  • Aluminium composite 3 mm — long service life, no corrosion
  • Retroreflective film — night visibility (transport)
  • Enamelled metal — outdoor environment, 10+ years of service

Standards: designed taking into account the requirements of GOST R 12.4.026-2015 (W and D families), ISO 7001 (Public information symbols), SP 59.13330.2020 (adaptation for people with reduced mobility). No Braille (a purely visual sign — unlike the tactile family).

For whom

Government budget institutions (school, hospital, administration), transport enterprises (bus station, railway, airport), shopping complexes and government service zones.

Usage instructions

1. Mark the place (corridor, above a door, façade)
2. Choose the material and size variant for the environment
3. Install at viewing height (1.4–2.5 m depending on the environment)
4. For the adhesive variant the surface must be clean/dry

Where to use

Transport station, Bus station, Airport, Hospital, Government institution, School, Multi-storey building entrance
